1000w fiber laser tube cutting machine

Rincian Produk

Sertifikasi: CE
Ketentuan Pembayaran & Pengiriman:
Kuantitas Minimum Order: 1 SET
Harga: USD Per SET
Rincian kemasan: Kotak kayu dengan sabuk pengikat besi
Waktu pengiriman: 20-30 Hari Kerja
Ketentuan Pembayaran: T / T, L / C, Western Union
Kemampuan Supply: 2000 Unit per tahun

Deskripsi Produk Terperinci

Jenis Laser:	Sumber Laser Serat	Area pemotongan:	Diameter 20-200mm
Mode Pendinginan:	Pendingin air	Aplikasi:	Bahan yang Berlaku
Tegangan kerja:	380V / 50Hz	Metode fokus:	Mengikuti Dan Menyesuaikan Fokus Secara Otomatis
Metode transmisi:	Perlengkapan dan Rak	Daya laser:	500W 1000W 1500W 2000W
Kecepatan memotong:	0-60000mm / mnt	Brand:	Riselaser

laser tube cutting is specifically designed for manufacturers who care about high-quality products and tube cutting. Fully protective cover is able to keep the operators out of the damage of laser beam. Easy usage, maintenance and service have been achieved by the high-tech of fiber lasers. Rack & Pinion, Guide Linear and Auto motor have assured our high acceleration.

Main Feature

1> The whole structure is welded, stable performance, to ensure the stable operation

2> With 650 degree high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.

3> New beautiful designed, fully enclosed protective cover.

Parameter teknik

Tube length	6000mm
Tube outer diameter	20-200mm
Sumber Laser Serat	1500W
Kepala pemotongan laser	Raytools
Cooling model	Pendingin air
X/Y Position Accuracy	± 0,05mm
X/Y Reposition Accuracy	± 0,03mm / m
Minimum line width	0.15mm
Laser life(hrs)	100,000

Parameter pemotongan

	500W	1000W	1500W	2000W	3300W
Besi tahan karat	0.5-3	0.5-5mm	1.5-6mm	1-8mm	1-10mm
Mild Steel/Carbon	1-6	1-10mm	1-14mm	1-18mm	1-20mm
Aluminium		1-4mm	1-6mm	1-8mm	1-10mm

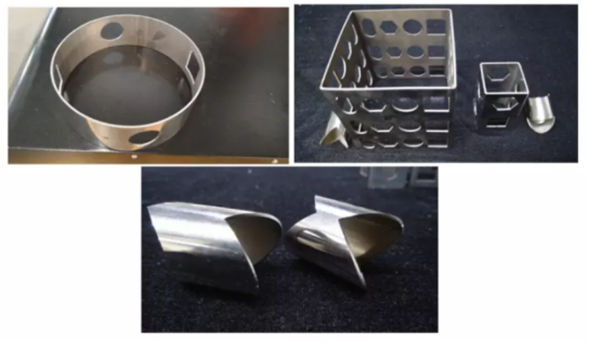

Sampel

Faq

Q1. Trading company or manufacturer?
A: We are a professional manufacturer!

Q2: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic CAD software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.

Q3. What should I do when the machine is in trouble?
A: Follow the instructions of our manual to make sure all the wires be connecting well,and keep your lens mirrors clean,then share details with our technicians.

Q4: Is it harmful to human body when in operation ?
A: It is safe if you do as manual and keep your skin and eyes away from the laser light(invisible).
