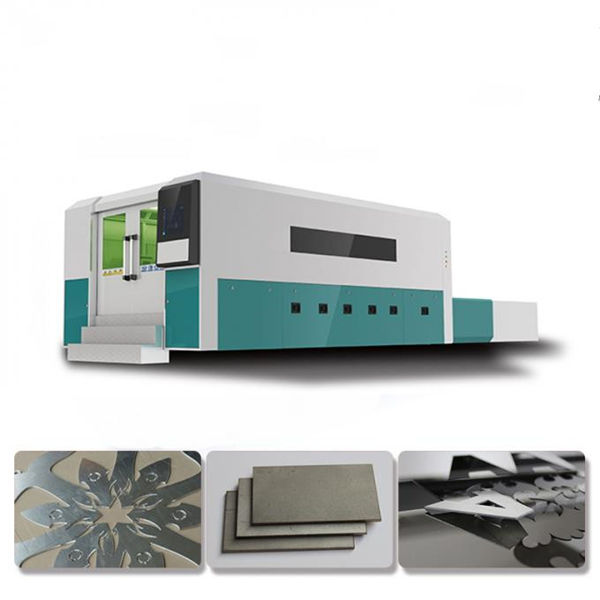

Hemat 25m / min sheet metal cutting machine dengan sistem jalur cahaya

Hemat 25m / min sheet metal cutting machine dengan sistem jalur cahaya

Rincian Produk


Sertifikasi: ISO9001: 2008
Ketentuan Pembayaran & Pengiriman:
Jumlah Pesanan Minimum: 1
Harga: negosiasi
Rincian kemasan: Kasus kayu
Waktu pengiriman: 7-15 hari
Kemampuan Supply: 1 unit / bulan

Deskripsi Produk Terperinci


Nama Produk:Pemotong Laser Lembaran LogamDaya laser:1000w 1500w
Panjang gelombang laser:1080nmArea kerja:3000 * 1500mm
Ketebalan pemotongan:0-16MM (tergantung Daya Laser)Sumber Daya listrik:380v
Jaminan:1 tahun

Deskripsi Produk


1. Integrated machine design: left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stabilitas dan keandalan sistem jalur cahaya dan sistem kontrol.
3. Serat laser memiliki fungsi dan umur yang tinggi dan stabil yang lebih dari 100.000 jam.
4. Kualitas dan efisiensi pemotongan yang lebih tinggi dengan kecepatan potong mencapai 25m / menit dengan ujung tombak yang sempurna.
5. Peredam kinerja tinggi, gigi dan rak; Panduan Jepang dan sekrup bola.

Fitur utama


1. Easy operations: fiber line transmission, no adjustment of optical path;
2. Fast cutting speed: Cutting speed is more than 20m/min.
3. Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has 3 times photoelectric conversion efficiency
5. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
6. Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
7. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

Spesifikasi teknis


Panjang gelombang laser1080nm
Ketebalan pemotongan0,2-16mm
Daya keluaran laser1000W
Kisaran pemrosesan maksimum3000 * 1500mm
Mode penggerak mesinrack rack dan pinon drive yang diimpor
Y X. akurasi posisi sumbu± 0,01mm
Sumbu XY mengulangi akurasi posisi± 0,01mm
Mode catu daya380V / 50Hz
Kecepatan potong maksimum45 m / mnt
Lebar garis potong minimum0,02mm
Mode pendinginan3P Pendinginan air

Sheet Metal Laser Cutting Machine Application


Application materials: mainly non-contact cutting metal materials, carbon steel, stainless steel, aluminum, titanium, galvanized plate, galvanized plate, silicon steel, pickling board and other fragile alloys.
Applications industry: household appliances, sheet metal processing, precision metal parts (aerospace), electronic appliances, subway parts, auto machinery, metallurgical equipment, gifts, tools, processing, advertising decoration and other industries.

Rincian Mesin Pemotong Laser
