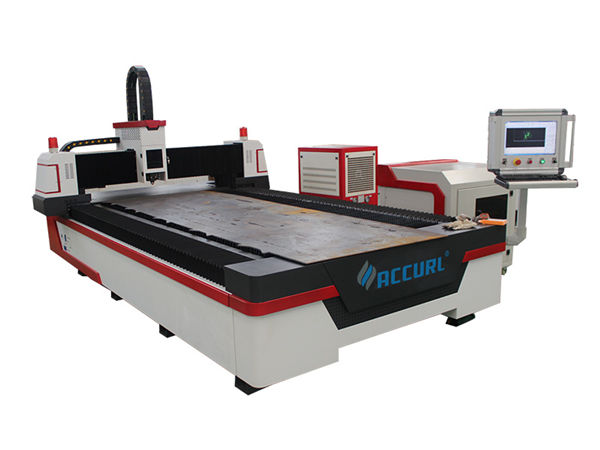

hot sale 6kw fiber laser cutting machine

Rincian Produk

Sertifikasi: CE
Ketentuan Pembayaran & Pengiriman:
Kuantitas Minimum Order: 1 Set
Price: 250000USD/SET
Rincian kemasan: 1 * 40GP kontainer
Waktu pengiriman: 30 hari
Ketentuan Pembayaran: L / C, D / A, T / T, D / P, Western Union

Deskripsi Produk Terperinci

Nama Produk::	6kw Fiber Laser Cutting Machine Made In China Taiwan Taiyi	CNC Atau Tidak ::	iya nih
Mode Pendinginan ::	Pendingin air	Format Grafik Yang Didukung ::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Layanan Purna jual Disediakan ::	Insinyur Tersedia Untuk Menyervis Mesin Di Luar Negeri	Mengulangi Akurasi ::	+ -0,03mm
Suhu Operasional::	0 ° C-45 ° C	Area pemotongan:	3000x1500mm

Aplikasi Mesin

Bahan yang berlaku:

Mesin Fiber Laser Cutting digunakan untuk memotong lembaran logam & pipa:

Stainless Steel, Baja Ringan, Baja Karbon, Baja Paduan, Baja Pegas, Plat Besi, Besi Galvanis, Lembaran Galvanis, Aluminium, Tembaga, Kuningan, Perunggu, Emas, Perak, Titanium, dll.

BerlakuIndustri yang mampu:

Mesin Pemotongan Laser Serat terutama diterapkan dalam pemrosesan logam: pelat & tabung logam, pintu aman, tumpukan pengisian, suku cadang mobil, spaceflight, suku cadang elektronik, suku cadang kereta bawah tanah, mesin, komponen presisi, kapal, lift, peralatan dapur, hadiah dan kerajinan, perlengkapan seni logam , pemrosesan alat, perhiasan, surat iklan, barang besi, sasis, rak dan lemari, perangkat keras, bingkai kacamata, papan nama, dll.

Spesifikasi

Sumber Laser	IPG / Nlight / Raycus / Max
Mesin tubuh	struktur gantry
Kecepatan lari maks	120 m / mnt
Akurasi posisi X / Y	± 0,03mm
Sumber Daya listrik	380V 50Hz / 60Hz
X / Y presisi lokasi berulang	± 0,03mm
Suhu Lari	0 ° C-40 ° C
Akselerasi Maks	2G
Mesin daya kotor	46KW
Bahan Terapan	Baja ringan tipis, baja tahan karat dan jenis lembaran logam lainnya
Area Pemotongan	3000mm * 1500mm / 4000mm * 2000mm / 6000mm * 2000mm
Berat keseluruhan	8600KGS

Tampilan sampel

Mengapa Memilih Kami?

1. Perlindungan Merek
2. Jaminan Kualitas & Hemat biaya tinggi
3. Produsen Cina dengan harga yang kompetitif
4. Layanan multi-bahasa dengan respon cepat
5. Insinyur layanan luar negeri tersedia
6. OEM tersedia

Latihan

Setelah menandatangani kontrak, perusahaan Anda dapat mengatur teknolog ke pabrik kami atau kami dapat mengatur insinyur ke pabrik pelanggan. Isi pelatihan sebagai berikut:
a) Pelatihan perangkat lunak pemotongan umum;
b) Prosedur menghidupkan dan mematikan mesin;
c) Pentingnya parameter panel kontrol dan perangkat lunak, pengaturan rentang parameter;
d) Pembersihan dasar dan perawatan mesin;
e) Pemotretan Masalah Perangkat Keras Umum;

Jaminan

Sebuah). 2 Tahun untuk seluruh mesin (Kerusakan Buatan Manusia dinegosiasikan.).
b). Sumber laser Garansi 2 Tahun
c). Pemeliharaan seumur hidup dan pasokan suku cadang
d). Pelatihan gratis untuk staf operasi. (Insinyur bisa pergi ke luar negeri dinegosiasikan.)

FAQ for Laser Cutting Machine

Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

T2: Ketika saya mendapat mesin ini, tapi saya tidak tahu bagaimana menggunakannya. Apa yang harus saya lakukan?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.

Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.

Q6: What’s package, will it protect the products?
A: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.

Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
