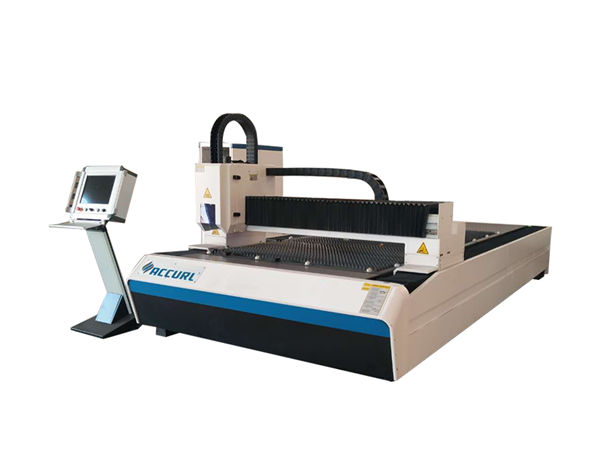

industri 1500 w logam serat laser mesin pemotong sinar laser kecil ukuran kompak

industri 1500 w logam serat laser mesin pemotong sinar laser kecil ukuran kompak

Rincian Produk


Sertifikasi: CE / ISO / FDA / SGS / TUV
Ketentuan Pembayaran & Pengiriman:
Jumlah Pesanan Minimum: 1
Harga: Dapat dinegosiasikan
Rincian kemasan: Kasus kayu
Waktu pengiriman: 15 hari kerja
Ketentuan Pembayaran: T / T, L / C, Western Union
Kemampuan Supply: 2000 unit

Deskripsi Produk Terperinci


Nama Produk:Mesin Pemotongan Laser SeratJenis Laser:Serat Laser
Daya laser:300-1500wArea kerja:1500 * 3000mm
Panjang gelombang laser:1070-1090nmSumber Daya listrik:380V / 50Hz
Jaminan:1 tahunPaket:Peti kayu
Certificate:CE

Konfigurasi utama dan keunggulan teknis


Fiber laser is a new international type of fiber laser, it has a large heat dissipation area, good beam quality, small size, etc., it has obvious advantage compare to the large volume gas lasers and solid lasers, gradually developed into the important candidate in high precision laser processing, laser radar systems, space technology, laser medical and other fields. For cutting or drilling, fiber laser is most efficient way, and for other different metal processing.
Mainframe part consist of bed, beam, working table, Z axis, control system, gas and water
system. By controlling the AC server motor of X. Y. Z axis, which drives the cutting head to achieve sable, reliable ad high speed reciprocation motion, the travel distance of X axis is 3025mm, Y axis is 1525mm; X, Y axis linear guide line are used photoelectric sensor and other position components, effectively ensure the accuracy of transmission.
Working table: the machine adapts fixed working table, which is made of welding frame with support rail supporting the workpiece, the table bearing up to 500kg, there are universal balls around the workbench.
The maximum prevention of laser cutting sheet metal loading and unloading scratches.

Fitur utama


· Excellent beam quality(BPP)
· Constant BPP in full power range
· Small laser beam
· Electro - optical conversion efficiency>30%
· Free maintanence
· Compact size,easy installation
· Lifespan >100,000 hours
· Integrated optical-optocoupler, or shutter

Konfigurasi Utama


BarangNamaKuantitasMerek
Laserlaser serat1 SETMaxphotonics
Memotong kepalaKepala pemotongan khusus1 SETRayTools BT (Swiss)
Tempat tidur mesin1 SETCina
Rak Tepat1 SETTAIWAN DINSENSE
Mesin tubuhRel pemandu linier yang tepat1 SETTAIWAN HIWIN / TAIWAN shac
Servo dan driver sumbu X, Y1 SETLETRO
Sistem peredam1 SETTAIWAN DINSENSE
pengontrol1 SETFRANCE Schneider
Aksesori tempat tidur mesin1 SETCINA
Sistem pemotongan digitalSistem pengontrol1 SETShanghai cypcut / Shanghai Empower
Pendingin1 SETTeyu
Peralatan daur ulang air1 SETCina

Parameter teknik


Media Pengerjaan LaserND: YVO4
Panjang gelombang laser1070nm
Kekuasaan500W / 800W / 1000W
Kualitas Balok< 0.373mrad
Ketebalan pemotongan maxTergantung pada kekuatan
Area kerja3000mm × 1500mm
Akurasi posisi≤ ± 0,05㎜ / m
Akurasi pengulangan≤ ± 0,05㎜ / m
Sumber Daya listrik380V / 50Hz

Keuntungan


Fiber laser source compared with traditional laser source and non-laser devices is more Eco-friendly .
● With lower electric consumption, fiber laser electro-optical conversion rate is five times of traditional laser.
● Has lower cooling requirement.Lower power fiber laser source only needs air cooling.
● Has higher spot quality , single mode source.
● Has lower consumption ,no need to replace lamp or bar etc consumption material .

Aplikasi


Widely used for cutting, welding and drilling on stainless steel, carbon steel, Alloy steel, silicon steel, galvanized steel sheet, nickel-titanium alloy, chromium-nickel alloy, titanium alloy and other metal materials.
Diterapkan dalam pemrosesan lembaran logam, penerbangan, kedirgantaraan, elektronik, peralatan listrik, alat kelengkapan tabung, mobil, mesin makanan, mesin tekstil, mesin teknik, suku cadang presisi, kapal, peralatan metalurgi, elevator, peralatan rumah tangga, pemrosesan lembaran logam, peralatan dan peralatan dapur , hadiah kerajinan, pemrosesan alat, dekorasi, iklan, pemrosesan logam dan industri manufaktur lainnya.

A. Mesin akan dilengkapi dengan video pelatihan dan manual pengguna dalam bahasa Inggris untuk instalasi, operasi, pemeliharaan dan pemecahan masalah, dan harus memberikan panduan teknis melalui email, faks, telepon, skype….
B. Kami menawarkan teknisi ke lokasi pelanggan untuk pemasangan dan pelatihan, pelanggan harus membayar visa, tiket, biaya hidup lokal.
C. Pelanggan dapat datang ke pabrik kami untuk pelatihan. Kami akan menawarkan pelatihan instalasi, operasi, pemecahan masalah alat berat, dan pemeliharaan.
D. We offer life-long technical service for all our machines.
