industrial precision laser cutting machine , 800w iron laser cutting machine

Rincian Produk

Sertifikasi: ISO9001: 2008

Ketentuan Pembayaran & Pengiriman:

Kuantitas Minimum Order: 1 set

Harga: negosiasi

Rincian kemasan: kasus kayu

Waktu pengiriman: 15 hari kerja

Payment Terms: Western Union, T/T, L/C

Kemampuan Supply: 2000 sets

Contact Now Chat Now

Deskripsi Produk Terperinci

Nama Produk:	Mesin Pemotongan Laser Serat	Jenis Laser:	Serat Laser
Daya laser:	500w, 800w, 1000w	Area kerja:	3000 * 1500mm
Memotong kepala:	Raytools	Pengendali:	CYPCUT
voltase:	AC380V/60HZ/3PH	Pendingin:	Pendingin air

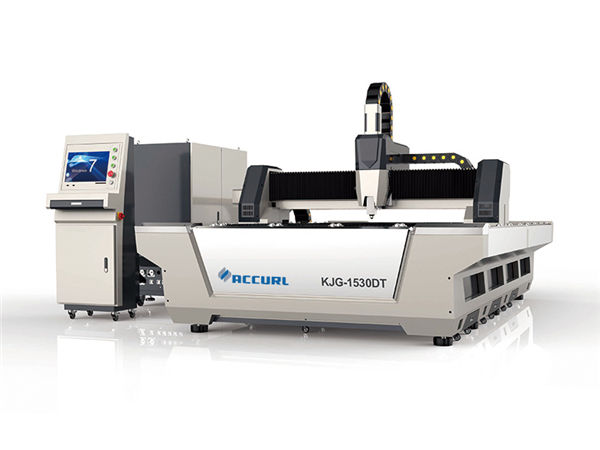

Laser Cutting Machine Features

Metal Cutting Laser For Sale mengadopsi generator laser serat canggih dan sistem penggerak sekrup bola, dapat memotong dan meninju berbagai jenis bahan logam dengan presisi tinggi dan kecepatan tinggi.
Karena laser ditransmisikan dengan serat, tidak perlu perawatan atau menyesuaikan jalur optik laser. Ini sangat mengurangi tingkat kesalahan alat berat dan memperpanjang masa kerja. Area pemotongan format besar memenuhi tuntutan berbagai jenis pemrosesan logam.

Laser Cutting Machine Advantages

- Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology.

The quality fiber laser beam results in faster cuttingspeeds and higher qualitcuts compared to other cutting solutions.

The key advantage of a fiber laser is its short beam wavelength (1064nm).

The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals.

This makes the fiber laser become a perfecttool for cutting metal sheets of stainless steel, carbon steel, mild steel, etc.

- The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser.

The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit willconsume little to no energy when not active.

- Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

- Powerful Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Konfigurasi utama

Barang	Nama	Kuantitas	Merek
Laser	laser serat	1 SET	Maxphotonics
Memotong kepala	Kepala pemotongan khusus	1 SET	RayTools BT (Swiss)
	Tempat tidur mesin	1 SET	Cina
	Rak Tepat	1 SET	TAIWAN DINSENSE
Mesin tubuh	Rel pemandu linier yang tepat	1 SET	TAIWAN HIWIN / TAIWAN shac
	Servo dan driver sumbu X, Y	1 SET	LETRO
	Sistem peredam	1 SET	TAIWAN DINSENSE
	pengontrol	1 SET	FRANCE Schneider
	Aksesori tempat tidur mesin	1 SET	Cina
Sistem pemotongan digital	Sistem pengontrol	1 SET	Shanghai cypcut / Shanghai Empower
Aksesoris	Pendingin	1 SET	Teyu
	Peralatan daur ulang limbah	1 SET	Cina

Bahan Aplikasi

Peralatan Pemotongan Laser Serat cocok untuk pemotongan logam dengan Lembaran Stainless Steel, Pelat Baja Ringan, Pelat Baja Karbon, Pelat Baja Paduan, Pelat Baja Musim Semi, Pelat Besi, Besi Galvanis, Lembaran Galvanis, Pelat Aluminium, Pelat Tembaga, Pelat Tembaga, Pelat Kuningan, Pelat Perunggu , Plat Emas, Plat Perak, Plat Titanium, Lembaran Logam, Plat Logam, Tabung dan Pipa, dll

Industri Aplikasi

Rise Laser Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
