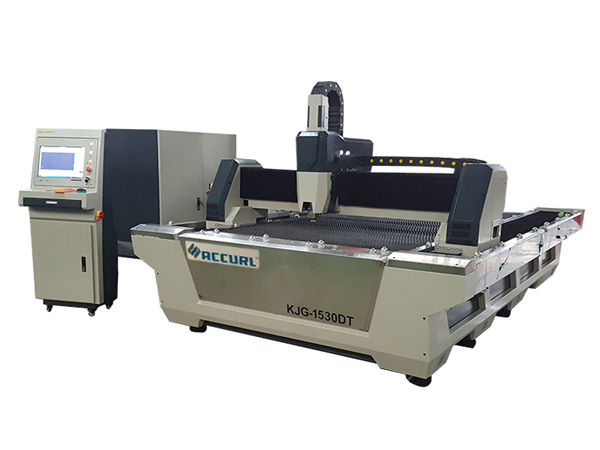

watt metal fiber laser cutting machine for precious metal processing

Rincian Produk

Sertifikasi: CE, FDA, IOS9001

Ketentuan Pembayaran & Pengiriman:

Kuantitas Minimum Order: 1 Set

Harga: USD

Packaging Details: Wooden Carton

Waktu pengiriman: 30-45 Hari

Payment Terms: T/T, Western Union, MoneyGram, L/C

Kemampuan Supply: 100 Sets Per Bulan

Deskripsi Produk Terperinci

Model:	RL-P5050-150	Daya laser:	150W
Sumber Laser:	Imported Fiber Laser	Ukuran Pemrosesan Maksimum:	500 * 500mm
Kecepatan Operasi Maksimum:	800mm / s	Sistem pengaturan:	Imported Nc System
Repetitive Positioning Accuracy:	0.001mm	Catu Daya Listrik:	AC380V 50Hz / 5KW
Dimensions(L* W* H):	1280mm1020mm1500mm	Kode HS:	8456110090
Paket Transportasi:	Karton kayu	Berat:	1100KG

Usage

The machine is with imported fiber laser, natural granite base, imported servo motor, high precision cross platform structure.
It is used to cutting and drilling a variety of alloy sheet, sapphire, ceramics and other sheet materials. It is widely applied to
the 5C industry, automobile, LED, precision machinery and so on.

fitur

1. Security and Reliability
The machine is high security and reliability of marble base as well as fully enclosed design.

2. High Speed and High Precision
Adopts imported linear motor drive, imported linear guide rail, Cross platform structure, NC system. The machine has good
performance with high cutting speed and smooth corner.

3. Long Using Life
The machine is with long life using the imported fiber laser and high efficiency photoelectric conversion design.

4. Good Cutting Effect
With excellent optical path design, produce a perfect focus spot, small thermal effect.

5. Convenient Operation
Convenient data processing with dedicated lase cutting software. File formats include DXF, PLT, etc. Interface is simple
and friendly, easy operation.

6. CCD can be Optional
Auto-finding point, cut designed graphics.

Aplikasi

The machine is applied to high-speed precision laser cutting and drilling of sapphire, ceramic and other sheet materials. It is widely used for 5C industry, automobile industry, LED industry, precision machinery industry, etc.

Parameter teknis

Barang	Spesifikasi
Model	RL-P5050-150
Sumber Laser	Imported Fiber Laser
Kekuatan Laser	150W
Maximum Processing Size	500mm×500mm
Maximum Operating Speed	800mm / s
Akselerasi Maksimal	10000 mm/s2
Positioning Accuracy of Table	±0.003mm
Repetitive Positioning Accuracy of Table	±0.001mm
Total Accuracy	± 0,03mm
Minimum line width	0.06mm
File Format	.dxf,.plt
Electric Power Supply	AC380V 50Hz/5kW
Dimensions(L x W x H)	1280mm×1020mm×1500mm
Berat	1100kg
Environmental Temperature	10ºC-30ºC
Environmental Humidity	10%-85%RH,Non-condensing
Ground Amplitude	≤5μm
Ground Pressure	60×103 kgf/m2
Sistem pengaturan	Imported NC System
Optional Features	CCD positioning/Automatic loading and unloading mechanism

Mengapa Memilih Kami?

1. Perlindungan Merek

2. Jaminan Kualitas & Hemat biaya tinggi

3. Produsen Cina dengan harga yang kompetitif

4. Layanan multi-bahasa dengan respon cepat

5. Insinyur layanan luar negeri tersedia

6. OEM tersedia

Latihan

Setelah menandatangani kontrak, perusahaan Anda dapat mengatur teknolog ke pabrik kami atau kami dapat mengatur insinyur ke pabrik pelanggan. Isi pelatihan sebagai berikut:

a) Pelatihan perangkat lunak pemotongan umum;

b) Prosedur menghidupkan dan mematikan mesin;

c) Pentingnya parameter panel kontrol dan perangkat lunak, pengaturan rentang parameter;

d) Pembersihan dasar dan perawatan mesin;

e) Pemotretan Masalah Perangkat Keras Umum;
