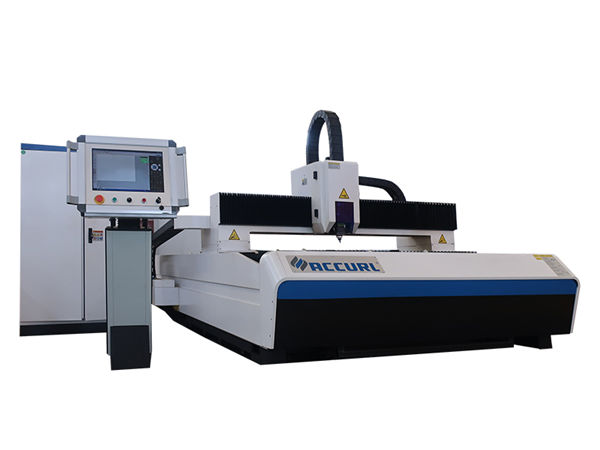

power metal fiber laser cutting machine for medical equipment

Rincian Produk

Sertifikasi: ISO9001: 2008
Ketentuan Pembayaran & Pengiriman:
Jumlah Pesanan Minimum: 1
Harga: NEGOSIASI
Rincian Kemasan: KASUS KAYU
Waktu pengiriman: 15 HARI
Kemampuan Supply: 2000 UNIT

Deskripsi Produk Terperinci

Nama:	Mesin Pemotong Laser Fiber Logam	Aplikasi:	Medical Equipment
Fitur:	Medium - Power	Nama lain:	Cnc Steel Cutting Machine
Jenis Laser:	Serat Laser	Sertifikasi:	ISO9001: 2008

Features of metal laser cutting machines

* The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.
* 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
* Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
* Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

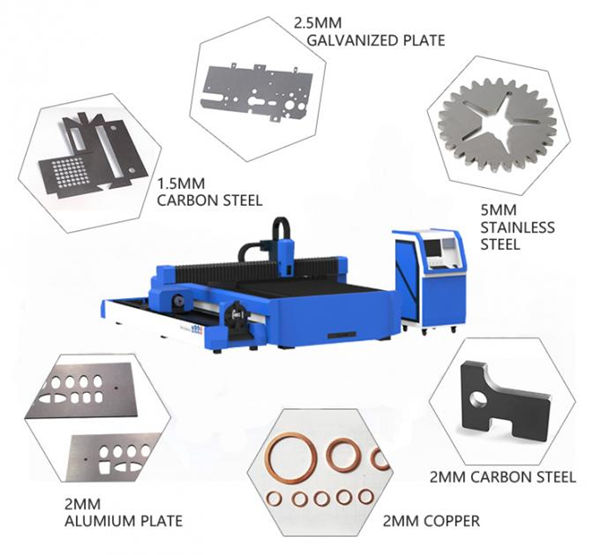

* Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.

Machine characters

* Using gantry type mechanic structure , performance is stable .
* Aheadcut USA fiber laser control system, with laser power adjusting function ,
* This model adopts servo motor driving system.machine bed movement structure using high accuracy gear to transit , so to ensure the high speed , high precision and high reliability.
* Using Raytools Switzerland fiber laser cutting head,safe and stable.
* Adopts Maxphotonics fiber laser source ,which is with imported modular high performance, low processing cost ,Eco-friendly .

Parameter teknis

^Barang	^Parameter
^{Jenis laser}	^{Laser serat}
^{Panjang gelombang}	^1070-1080nm
^{Efisiensi konversi elektro-optik}	^25-30%
^{Rute XYZ}	^{3025mm / 1525mm / 100mm}
^{Ketebalan pemotongan material}	^0,2-8mm
^{Memotong lebar jahitan}	^0,1-0,2mm
^{Ulangi akurasi posisi}	^{± 0,05mm / 500mm}
^{Akurasi posisi}	^{± 0,05mm / 500mm}
^{Kecepatan Pindah Max}	^{60000mm / mnt}
^{Kecepatan inflasi}	^0.8g
^{Berat pemuatan}	^500kg
^{Berat mesin}	^2300kg
^{Daya yang Dibutuhkan}	^{220V 50Hz / 60Hz}
^{Ukuran mesin (L * W * H)}	^{4500mm * 2450mm * 1700mm}

Bidang Terapan mesin pemotong laser

Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
Itu dapat zarry pada pemotongan non-kontak pada lembaran logam, pipa, terutama untuk stainless steel, plat sttel, bilah gergaji diomond dan bahan logam lainnya, ia memiliki proses yang sangat baik untuk berbagai paduan keras yang rapuh tinggi. Dalam garis industri perangkat keras dan lembaran logam, teknologi pemotongan laser sebagian dapat menggantikan garis pemotongan.
